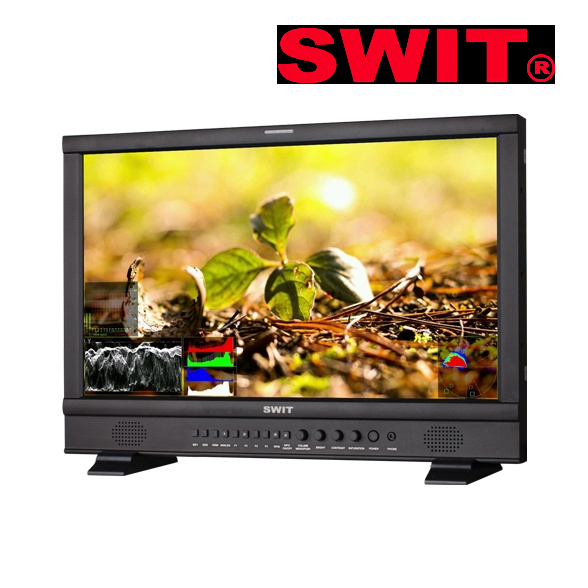

SWIT S-1223FS | 21.5" FHD Studio Monitor with full professional functions
Artikelnummer:
21070
Produktinformationen "SWIT S-1223FS | 21.5" FHD Studio Monitor with full professional functions"
Full professional functions, including desktop stand, TSL UMD
Der S-1223F verfügt über ein 21,5 Zoll großes IPS-LCD-Panel (In-Plane Switching) mit Full-HD-Auflösung
(1920 × 1080 Pixel), LED-Hintergrundbeleuchtung und einem Kontrastverhältnis von 1000:1 für präzise Farbwiedergabe.
Der Betrachtungswinkel beträgt horizontal und vertikal jeweils 178°.
Der S-1223F unterstützt Videoanalyse-Assistentenmuster, darunter: Wellenform (Y/Pb/Pr/R/G/B), Vektorskop,
Histogramm (R/G/B/Y), um die digitalen Videoqualitätsinformationen (Luma, Farbe, Sättigung usw.) in Muster umzuwandeln,
und die Muster können einzeln ein- und ausgeschaltet werden, Anzeigeposition (Oben/Unten/Links/Rechts),
Größe, Farbe und Transparenz können ausgewählt werden.
- 21.5-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI® monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- V-mount / Gold mount battery plate optional
- USB firmware upgrade
Technische Daten "SWIT S-1223FS | 21.5" FHD Studio Monitor with full professional functions"
Full professional functions, including desktop stand, TSL UMD
- 21.5-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI® monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- V-mount / Gold mount battery plate optional
- USB firmware upgrade
Lieferumfang "SWIT S-1223FS | 21.5" FHD Studio Monitor with full professional functions"
1 x SWIT S-1223FS 21.5" FHD Studio Monitor with full professional functions
Incl. AC Netzkabel, Desktop Füße, AC-DC Netzadapter, V-Mount S-7004S oder Gold-Mount Akkuadapter S-7004A
S-1223F adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight,
1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178° / Vertical: 178°.
S-1223F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope,
Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns,
and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right),
size, color, and translucence.
Full professional functions, including desktop stand, TSL UMD
- 21.5-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI® monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 3DLUT 17x17x17 color calibration
- Built-in Multiple De-log 3DLuts
- User LUTs upload by USB
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- V-mount / Gold mount battery plate optional
- USB firmware upgrade
